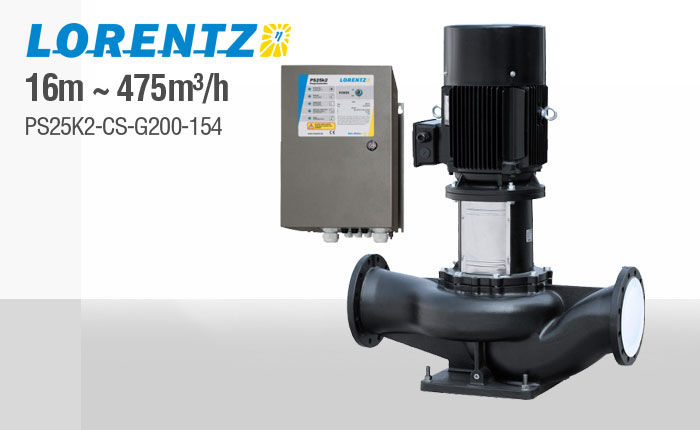

16m Solar Surface Pump
SPECIFICATIONS
ModelPS25K2-CS-G200-154
MakeLorentz
Max Head16 m
Max Flow Rate475.00 m³/h
ControllerPS25K2
Controller Power25 kW

16m Solar Surface Pump

Request a Quotation
  • Power max 25 kW
    Input voltage max 850 V
    Optimum Vmp** > 575 V
    Nominal voltage (battery operation) 40
    Motor current max A
    Efficiency max 98 %
    Ambient temp. -30...50 °C
    Enclosure class IP54
    Control inputs for dry running protection, remote control etc
    Protected against overload and over temperature
    Integrated MPPT (Maximum Power Point Tracking)
  • Rated power 18.5/4p kW
    Efficiency max %
    Motor speed 740...1,480 rpm
    Insulation class F
    Enclosure class IPX4
    Water temperature max 90 °C
